| Brand Name : | Mottcell |
| Model Number : | 60100 |
| Certification : | UN3480 |
| Price : | $1,000.00/pieces >=100 pieces |
60V 100Ah LiFePO4 Battery For Electric Forklift
| Recommended Charge Current | 50A |
| Max. Charge Current | 100A |
| Recommended Charge Voltage | 68.4V(3.60V/Cel |
| Recommended Discharge Current | 50A |
| Max. Discharge Current | 100A(Peak200A@5S) |
| Recommended Discharge Voltage | 43.2V |
| BMS Charge Cut-Off Voltage | 74.1V(1s)(3.90VCell) |
| BMS Discharge Cut-Off Voltage | 43.7V(1s)(2.30V/Cell) |
| BMS Discharge Cut-Off Current | 250A~400A(50~150ms) |
| BMS Communication Protocol | Optional |
| Support Parameter Adjust | Optional |
| Cellphone App | Optional |
| Monitor | Not Available |
| GENERAL | |
| Nominal Voltage | 60.8V |
| Nominal Capacity | 100Ah |
| Capacity @ 20A | 300 min |
| Energy | 6080Wh |
| Resistance | 530 mQ @ 50% SOC |
| Cell Type | LFP Aluminum Shell |
| Series & Parallel | 19S1P |
| MECHANICAL | |

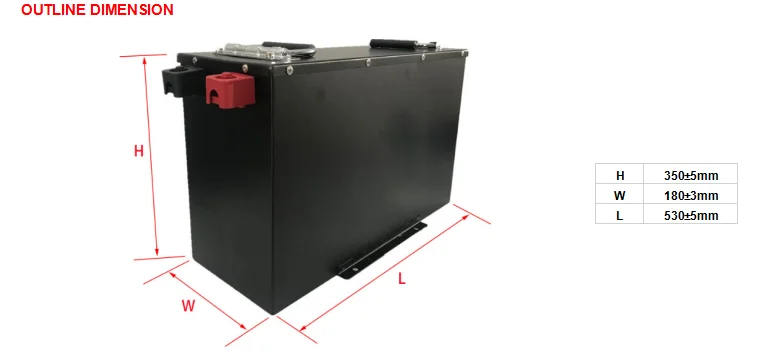

| Dimension (Hx W x L) | 350*180*530 mm |
| Approx. Weight | approx.54kg |
| Connector | Optional |
| Case Material | lron + Paint |
| Enclosure Protection | P53 |
| TEMPERATURE | |
| Discharge Temperature | -4~140F(-2060C) |
| Charge Temperature | 32~113F(0~45C) |
| Storage Temperature | 23~95F(-5~ 35C) |
| COMPLIANCE | |
| Certifications | UL1642EC62133(cells) |
| Shipping Classification | UN 3480 |
