Shenzhen Mottcell New Energy Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | Mottcell |
| Model Number : | 3.2v 200ah |
| Certification : | CE/ROHS/ISO/UN38.3 |
| Price : | $90.00/pieces 100-2999 pieces |

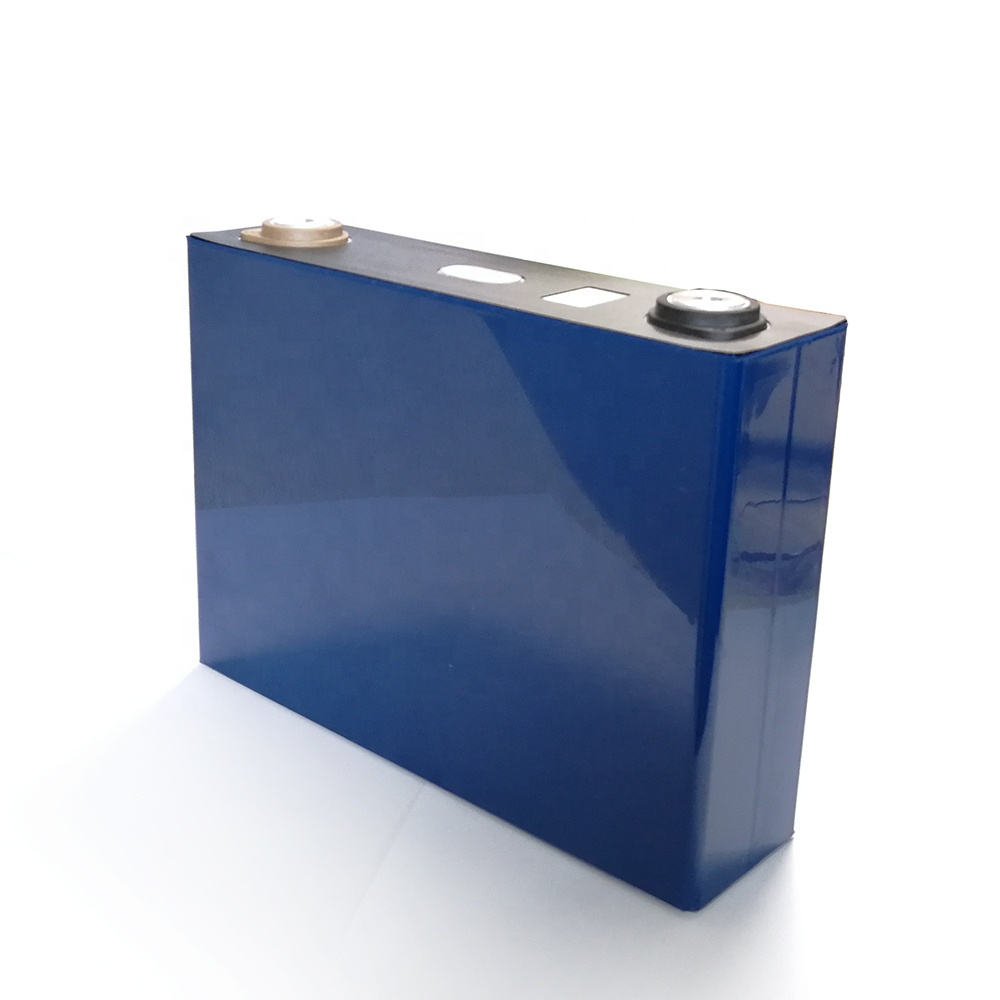

rechargeable li-ion battery prismatic cell 3.2v 100ah lithium lifepo4 cell
Specification
Battery Type | LiFePO4 |
Nominal Voltage | 3.2V |
Nominal Capacity | 200ah |
Internal Resistance | ≤5mΩ |
Limited Charge Voltage | 3.65V |
Charge Method | CC/CV |
Discharge Cut-off Voltage | 2.3V |
Max. Charge Current | 1C |
Max. Continuous Discharge Current (<30min) | 3C |
Pulse Discharge Current (<3s) | 5C |
Cycle Life | > 3000 cycles |
Dimension | Thickness: 54mm |
Width: 174mm | |
| Length: 207mm | |
Weight | 4220g |
Operation Temperature Range | Charge: 0~45℃; |
Discharge: -20~60℃ | |
Recommended operating temperature: 15℃~35℃ | |
Self-Discharge Rate | Residual capacity: ≤5%/month; |
Features
1. Safety: safest Li-Ion battery, CE UL approved, built-in PCM/BMS
2. Clean and Green energy, no toxic material contained
3. Long life cycle:> 3000 times, 6-8 times of lead acid battery
4. No memory effect, highly efficient, charge anytime
5. Small size and light weight: 1/2 size& weight of lead acid
battery
6. Good performance at high temperature
7. Low self-discharge rate: < 5% monthly
Application
Mainly used for power tools, RC toys, small medical instruments, solar energy system, solar light, emergency light, lighting, communication equipment, UPS, small portable equipment : interphone,portable printer, small household cleaner etc.
|
|
