Shenzhen Mottcell New Energy Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | Mottcell |
| Model Number : | IFR22430P 3.2V 950mAh |
| Certification : | CE/MSDS/UN38.3 |
| Supply Ability : | 10 Unit/Units per Month 10KK |
| Price : | $2.00/pieces 1000-9999 pieces |

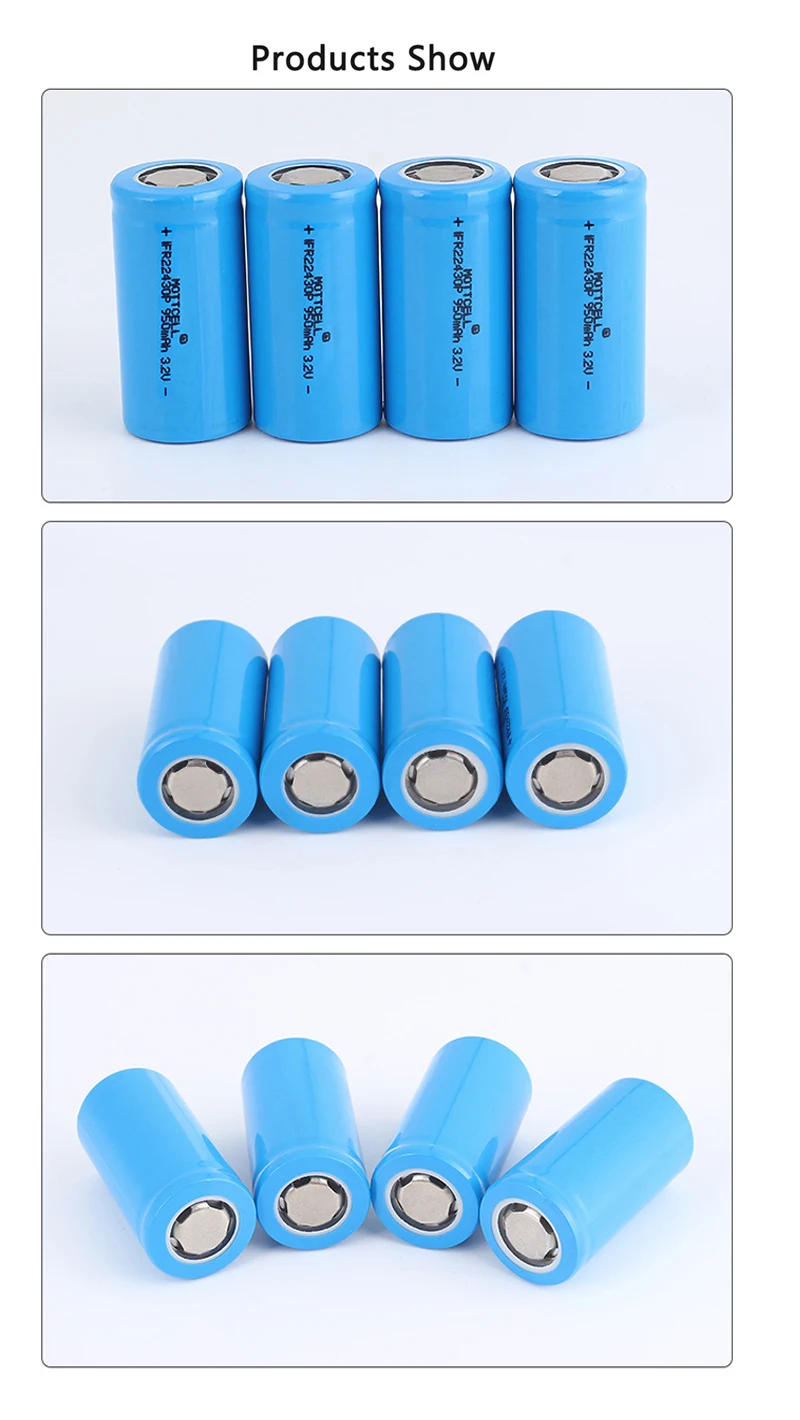

Mottcell 22430 Power Lithium Iron Phosphate Battery IFR22430P 950mA 3.2V Power LiFePO4 Battery Cell With Long Cycle
3.2V 22430 Power LiFePo4 Battery | ||
Electric | Nominal Voltage | 3.2V |
Nominal Capacity | 950mAh | |
Stored Energy | 3.04Wh | |
Cycle Life | ＞2000 Times | |
Self Discharge | ≤3% per Month | |
Standard Charge | End Of Charge Voltage | 3.65V |
Continuous Charge Current | 2C | |
Maximum Charge Current | 3C | |
Standard Discharge | Continuous Discharge Current | 15C |
Maximum Discharge Current(< 3s) | 20C | |
End Of Discharge Voltage | 2V | |
Environment | Charge Temperature | 0°c-45°c |
Discharge Temperature | (-10°c)-60°c | |
Mecanical | Cell Assembly | 3.2V 22340 LiFePO4 Battery |
Dimensions(Height*Width) | 22.5mm*43.3mm | |
Weight | About 45g | |
Warranty | 1years Warranty, our company will replace any defective item free
of charge | |
OEM/ODM | Sticker/Logo/ | |
Certifications | IEC /UN38.3 /UL/MSDS |
|
|
