Shenzhen Mottcell New Energy Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | Mottcell |
| Model Number : | IFR32650 |
| Supply Ability : | 3000000 Piece/Pieces per Month |
| Price : | $2.30/pieces 1000-9999 pieces |
| No. | Item | General parameter |
| 1 | Model | LiFePO4 battery |
| 2 | Nominal Voltage | 3.2V |
| 3 | Nominal Capacity | 6000mAh, 19.2Wh |
| 4 | Dimension | 32.5*70mm |
| 5 | Single cell | IFR 32650 |
| 6 | Charge cut-off voltage | 3.65V |
| 7 | Discharge cut-off voltage | 2.0V |
| 8 | Standard charge | 0.2C |
| 9 | Standard discharge | 0.2C |
| 10 | Fast charge | 1C |
| 11 | Fast discharge | 1C |
| 12 | Max continuous discharge current | 3C |
| 13 | Charge temperature | 0~45°C |
| 14 | Discharge temperature | -10~60°C |
| 15 | Weight | 165g |
| 16 | Certification | CE. UL. UN38.3. MSDS.ROHS.BIS. |

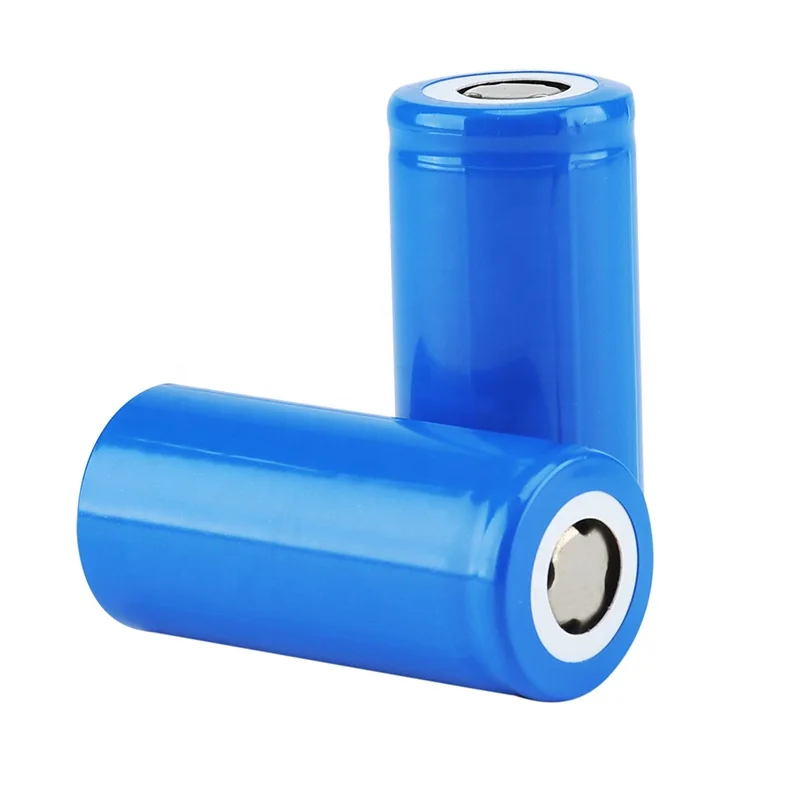

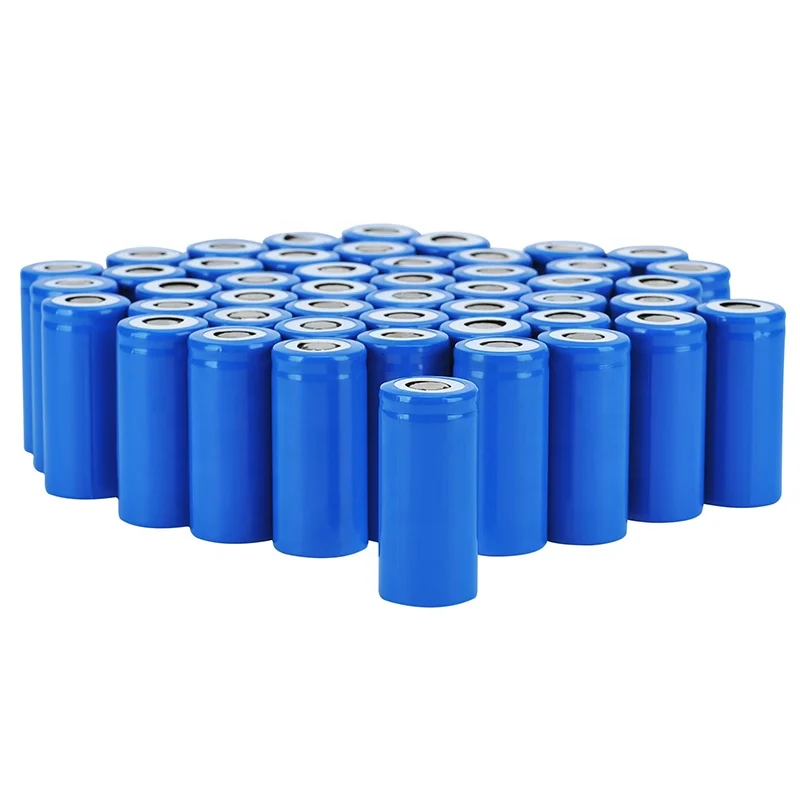

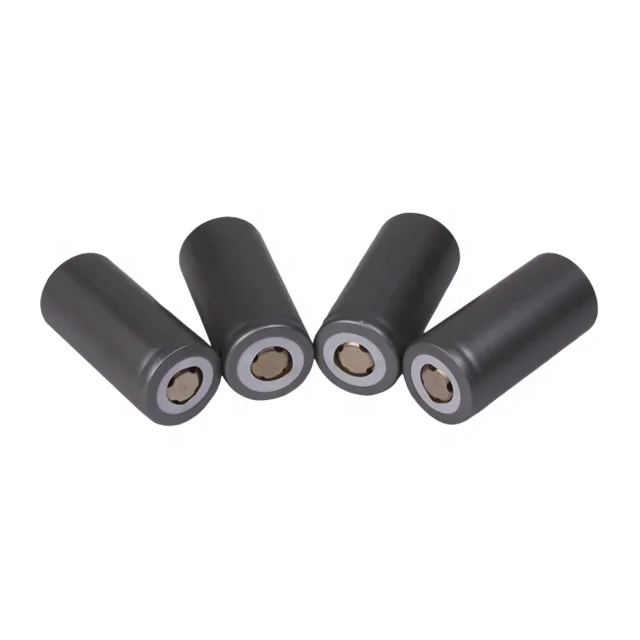

Product Images
Features and Advantage
♦Safety: safest Lifepo4 battery, UL,UN38.3,UL,CE ROSH approved,
built in PCM/PCB, none fire or explosive
♦Clean and Green energy, no toxic material contained
♦Good performance at high temperature and high temperature
resistance
♦No memory effect,highly efficient charge anytime,no reduction of
capacity
♦Small size, light weight
The most advanced technology and high quality is our purpose to service our customer.Mottcell have strong R&D support to guarantee battery quality,and we can undertake battery product certificate in different markets in worldwide in line with customer demands.
Certification&Patent
Usage intructions:
1.Do not dismantle battery in any case
2.Do not immerse the battery in water to prevent moisture
3.Prohibited at the heat source, such as fire heaters,etc.,use or place the battery
4.Do not heat the battery or put it into fire. Do not solder the battery directly
5.Do not heat in afire or hot environment
6.Do not place the battery in a microwave or high pressure vessel
7.Do not use damaged batteries
8.It is forbidden to link the battery positive and negative with a metal such as a short circuit
♦Portable electronics, like flashlight, camera;
♦Household electrical appliances;
♦Solar lawn light,Miner's lamp,small Medical equipment;
♦Remote control car.boat.Aircraft and other toys;
...Etc...
|
|
