Shenzhen Mottcell New Energy Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | Mottcell |
| Model Number : | IFR32650 |
| Certification : | CE/ROHS/ISO/UN38.3 |
| Price : | $1.86/pieces 300-19999 pieces |

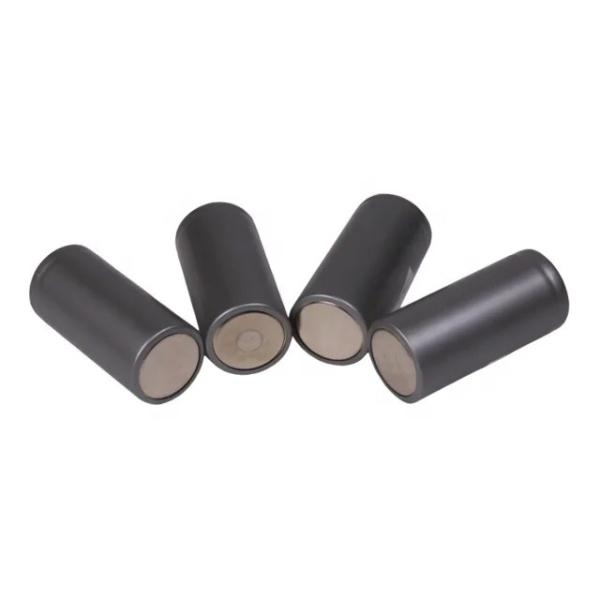

LiFEPO4 3.2V battery 32650 6Ah Cylindrical Batteriey Cells
Specification
Nominal Capacity | 6000mAh | Cell Configuration | cylinder |
Mimimum Capacity | 5950mAh | Internal Impedance | 15mΩ |
Nominal Voltage | 3.2V | Dimensions(mm) | 32.5mm(dia.)*65.5mm(ht.) |
Discharge Cut-off Voltage | 2.0V | Weight | 150 g |
Charge Cut-off Voltage | 3.65 V | Charge Temperature Range | 0°C~45°C |
Standard Charging Current | 1000mA | Discharge Temperature Range | -10°C~60°C |
Standard Discharge Current | 1000mA | Charge Method | CC/CV |
Fast Charging Current | 6000mA | Storage Temperature Range | Less than 1 year:-20~25°C |
Less then 3 months:-20~40°C | |||
Max Discharging Current | 18000mA | Cycle Life (80% DOD) | 3000 cycles |
Maximum Continuous Charge Current | 1C | Maximum Continuous Discharge Current | 3C |
Features
* High quality
* Factory price, fast delivery
* Long cycle life, No memory effec
* High safety, environment friendly
* High working voltage for single battery cells
* Widely application for electronics and industries
Safety
Passed the below safety tests (Drop shock,Impact,Squeeze,Soak,Bonfire,over-charge,over-discharge). No leakage, no venting, no disassembly, no rupture and no fire with stable chemical structure.
Application
Mainly used for power tools, RC toys, small medical instruments, solar energy system, solar light, emergency light, lighting, communication equipment, UPS, small portable equipment : interphone,portable printer, small household cleaner etc.
|
|
