Shenzhen Mottcell New Energy Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | Mottcell |
| Model Number : | 12v 100ah |
| Certification : | CE/ROSH/MSDS/UN38.3 |
| Supply Ability : | 30K pcs per month |
| Price : | |
| Payment Terms : | L/C, D/A, D/P, T/T |
| Delivery Time : | 15-20days |
| Power Source: | Solar panel, grid, generator | Storage Temperature: | 14℉ ~ 122℉ (-10℃ ~ 50℃) |
| Size: | L260*W168*H215 mm | Internal Impedance: | ≤40mΩ |
| Discharge Temperatur: | -4℉ ~ 140℉ (-20℃ ~ 60℃) | BMS: | 100A |
| Max. Continuous Charge Current: | 100A | Charge Temperature: | 32℉ ~ 131℉ (0℃ ~ 55℃) |
| Current Type: | DC | Charge Method: | CC/CV |
| Energy: | 1280Wh | Max. Continuous Discharge Current: | 100A |
| Low-Temperature Charging Recovery: | 41℉/5℃ | Cycle Life: | ≥6000 times |
| Recommend Charge Current: | 20A (0.2C) | Resistance Properties: | Water Resistant |
| Low-Temperature Charging Protection: | 32℉/0℃ | Country/Region of Manufacture: | China |
| Protection Properties: | Short Circuit Protection, Overvoltage Protection, Overcurrent Protection, Overcharge Protection | Application: | Marine, Back-up Power, Recreational Vehicle (RV), Camping/Hiking, Electronics |
【1/3 Lighter, 8X Higher Energy Density】
Mottcell 12V 100Ah Group 24 LiFePO4 battery has 41% more VED (Volumetric Energy Density) yet only 75% the volume of the Mottcell 12V 100Ah Group 31 battery. It is also 1/3 lighter than a Group24 AGM battery, has an 8X MED (Mass Energy Density), and produces 100% energy (1280Wh). (At 1C discharging rate, the 70Ah AGM Group24 battery's standard at 60% DOD is just 42Ah capacity with 504Wh usable energy output.
【1.28kWh, Expandable to 20.48kWh】
Flexible and expandable from 1.28kWh to Max. 20.48kWh (16 identical 12V 100Ah Group 24 batteries wired in 4P4S), you can easily upgrade your battery system as needed. The power output ranges from 1.28kW to 20.48kW and can be used in a variety of appliances. It is not restricted to RV batteries, but also works well in home backup systems and off-grid living.
【Grade-A LFP Cells and Robust BMS 】
Mottcell insists on using Automotive quality LiFePO4 prismatic cells across its lithium battery portfolio, and the battery is protected from overcharging, overdischarging, overcurrent, overheating, and short-circuiting by a powerful BMS. These components enable consistent and dependable performance over the battery's 10-year service life.
Long life, large capacity and good shock resistance
Low self-discharge and good discharge performance at low
temperature
Strong charging acceptance and quick-charging capability
Strong over-discharge resistance and charge retention
Maintenance-free and no acid or water for maintenance in usage
Excellent large current discharge performance, and have obvious
advantages in startup and climbing
Environmental friendly
Lighter weight smaller size
Most safe no explosion no fire
1. Light: headlamp, emergency light, sloar flashlight, searchlight,
lanten,bicycle light, LED light, military flashlight, high-end
flashlight, high power flashlight, brightflashlight.
2. Outdoor sports products: camping light, mountain bike light,
solor emergency light, self-defense flashlight,
3. Customer electronics: MPS, Tablet PC. laptop, Bluetooth
earphone, power bank, portable DVD player, speaker, microphone,
sound equipments, audio, Digital camera, vidican
4. Home appliances products: electric mop, electric vacuum cleaner,
electric children toys, electric shoes, electric blanket.
5. Medical devices
6. Instruments and meters: water meter, gas meter.
7. Electric transportation vehicles: electric bike, electric car,
e-scooter, electric motor
8. Power tools: electric drill, mower
9. UPS, GPS,AGV,PV,MV And so on

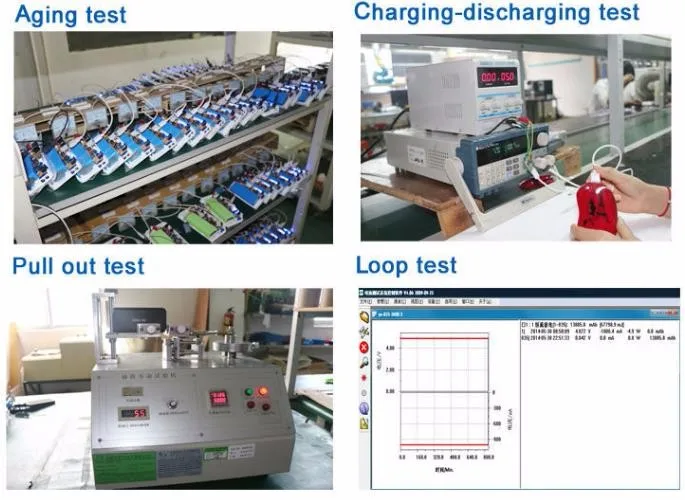

1. High quality: Restrict quality control in every step before
shipping.
2. OEM Welcomed: We have our own designers to meet any of your
requirments.
3. 24 hours online service: Customers can contact us for any
questions by TM, Skype, Telephone, Email, WeChat, Whatsapp, QQ,
etc.
4. Prompt & Favorable Delivery: We offer prompt shipment with the
best price for you.
5. Customer centric Aim& Warranty: More than one year warranty.
Your satisfaction is our mission!
Q1. Why customers choose us?
Re: Mottcell Company was established in 2005, is a leading lithium
battery manufacturer, distributor and exporter. And we committed to
provide high quality lithium batteries for customers all over the
world.
Q2. Are your batteries authentic?
Re: Yes, we can offer customs trade data and certification(such as
UN38.3,MSDS,UL,CE,ROSH)
Q3. Can you offer OEM/ODM service?
Re: Of course, we accept OEM/OEM. We have our own design
department, engineers to offer professional OEM/ODM service.

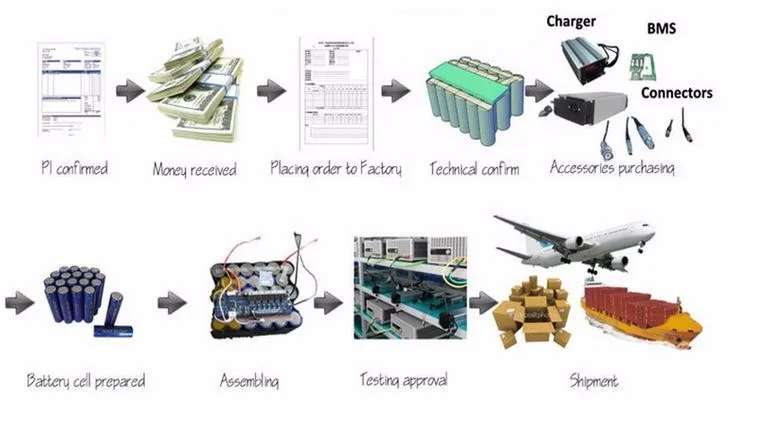

Q4. How to place order?
Re: Step1. Contact us on /by email with your order details.
Step2. Confirm order details.
Step3. PI(Proforma Invoice) will be offered to you for paying.
Step4. You arrange the payment.
Step5. After confirming the payment receipt, we prepare the goods
and arrange the shipment for you.
Step6. The tracking number will be sent to you after shipping. And
we will keep tracking.
Q5. What's the lead time?
Re: 1. Sample orders: 1-3 working days
2. Bulk orders: 3-5 working days based on different quantities
3. OEM orders: 7-12 working days on receipt of sample confirmation
Q6. What's your warranty?
Re: Our warranty for NCM batteries is 12 months,lifepo4 Battery is
36 months
Q7. What's the shipping method?
Re: 1.We will choose the most safest and the most economical
shipping way for you.
2. Normally it takes 3-5 days by DHL/UPS.
Q8. What's the payment method?
Re: T/T & Paypal
|
|
